Applicable materials:
Hard alloys, plated products, coated products, ABS, epoxy resin, ink coated products, ceramics, engineering plastics and so on.
The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine * s anti-reflection ability, be able to mark on aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
Modular design, separate laser generator and lifter, more flexible, can marker on bigger area and complicated surface.
Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
Adopt special flying marking control system, with good performance and easy operation.
Technical Parameters:
Model number | |
Type | Fiber laser printing machine |
Laser power | 10W/15W/20W/30W/50W |
Laser wave length | 1064nm |
Marking depth | ≦0.01MM |
Marking speed | ≦7000mm/s |
Marking line width | 0.01-0.2mm |
Min character size | 0.015mm |
Repeat accuracy | 0.01mm |
Mainframe | independent research and development |
Power source | MingWei power source |
Laser head | sino galvo、motor technologies |
Size | 1200*500*700mm |
Sccessory | a set of tools ,operation manual,fuse |
Communication port | USB |
Levels of protection | IP54 |
Environment condition | 0-40℃ |
Weight | 75KG |
Control software | independent research and development |
Working life | Lasers in theory for 100 thousand hours |

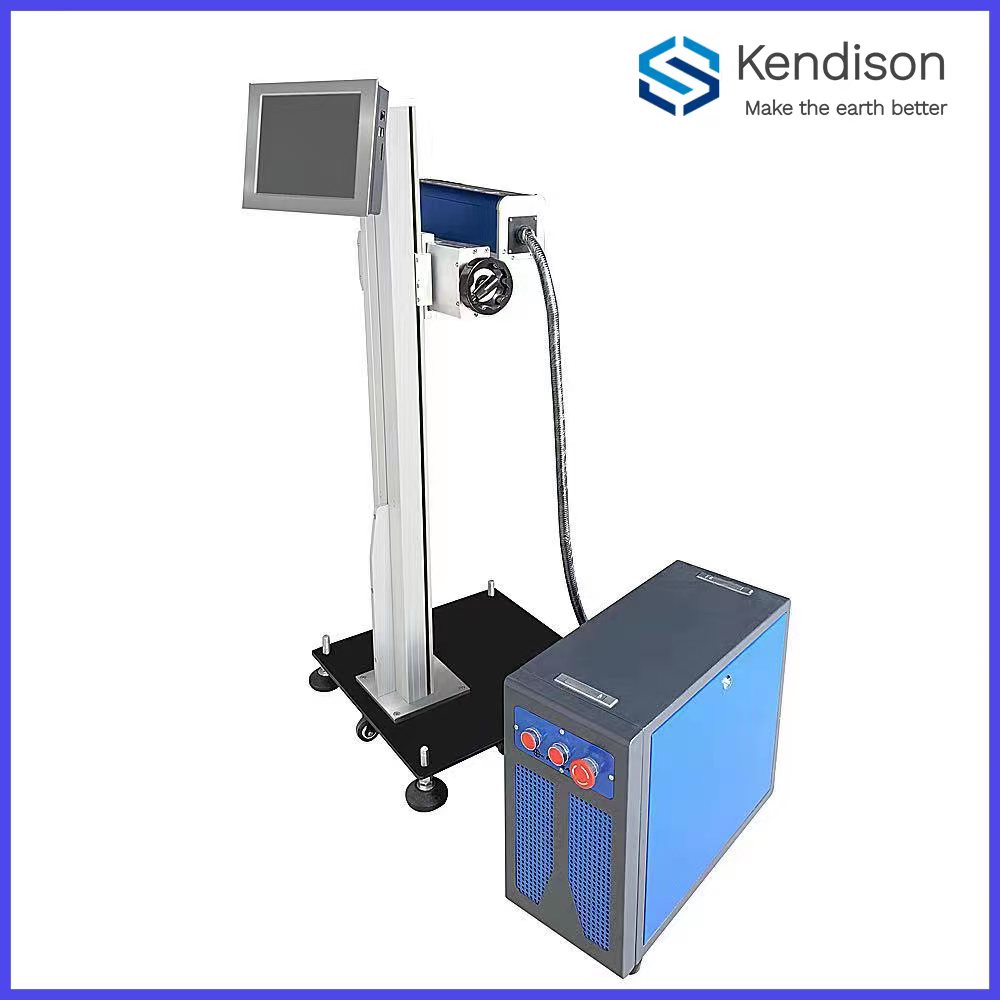

Machine photos:
